F1500 LED Status

F1500 LED Status


F1500 LED Status

The F1500 document scanner has two LED status indicators on the front left side. The top LED1 indicates the USB status (scan ready), and the bottom LED2 indicates the power status. The following table describes what each LED color/state indicates.

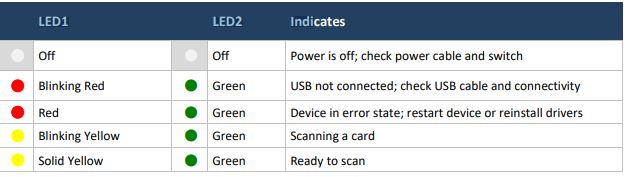

LED status for F1500 Desktop Scanner



IDentiFake with F1500 Scanner  –  The LEDs are just left of the Card Slot
