The instructions below provide step by step details on how to remove and replace the charging cable from an IDVisor Smart S50 charging stand. You will need a Phillips head screwdriver for these steps.

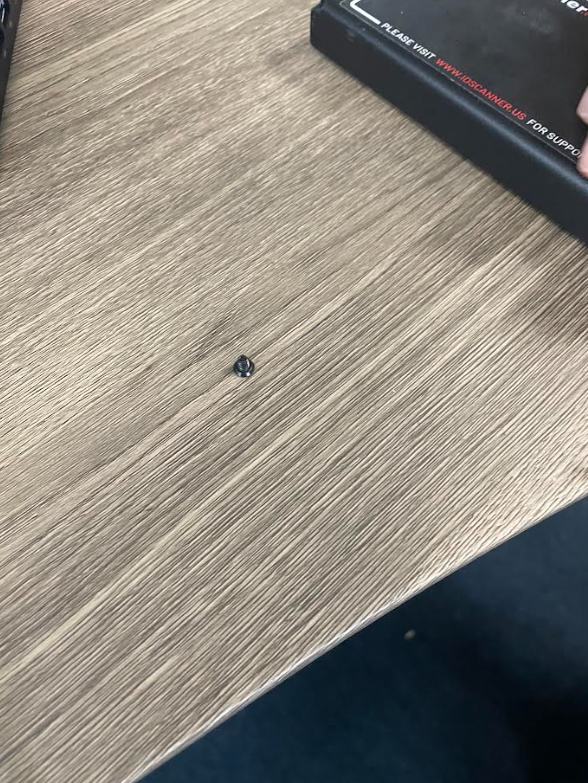

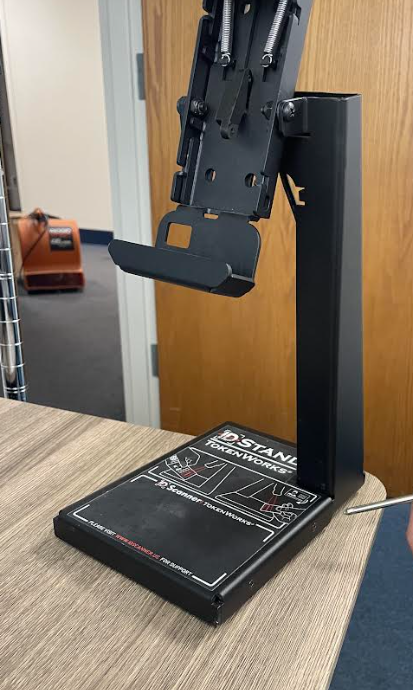

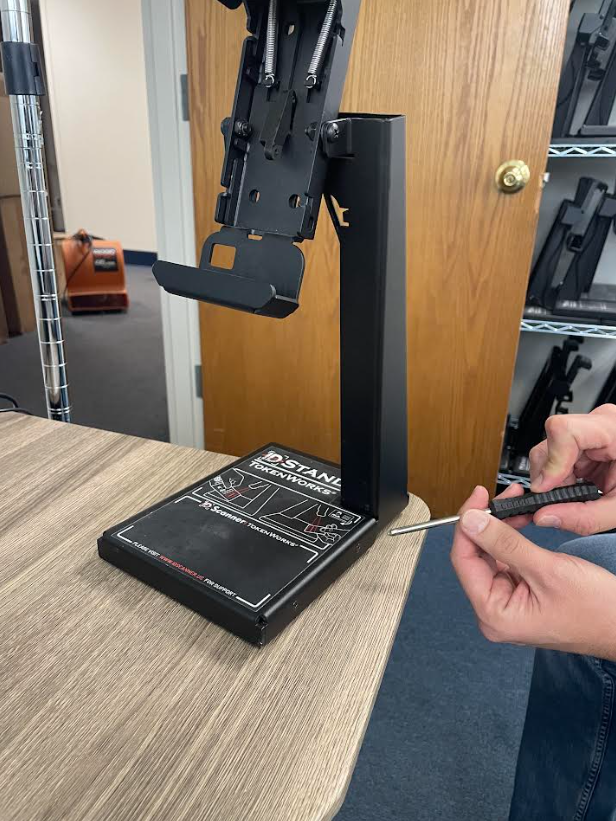

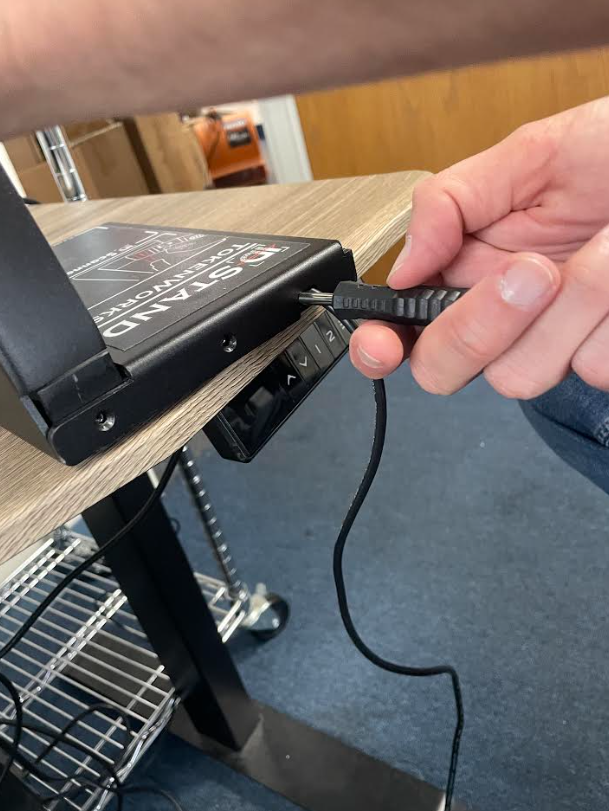

Step 1: Unscrew all screws on the bottom of the charging stand (2 on both sides and the back). Keep track of the screws as they are very small.

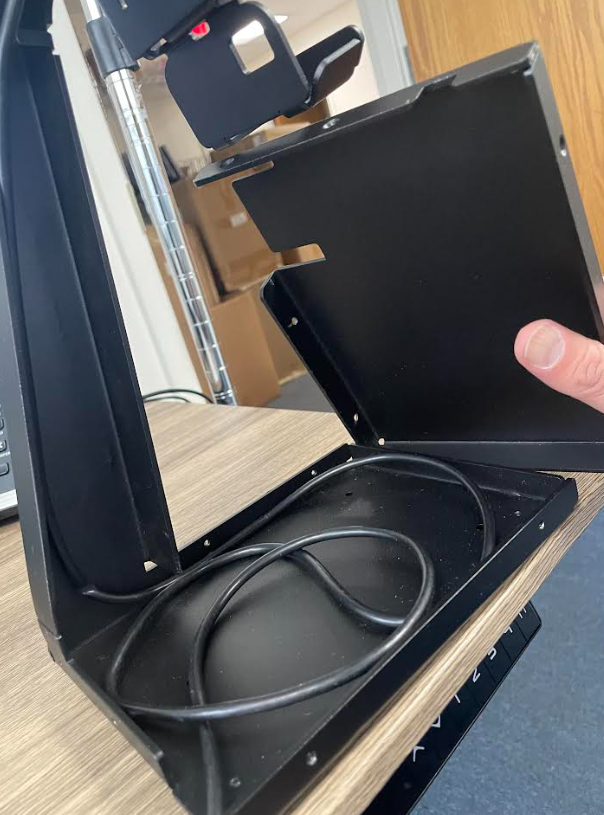

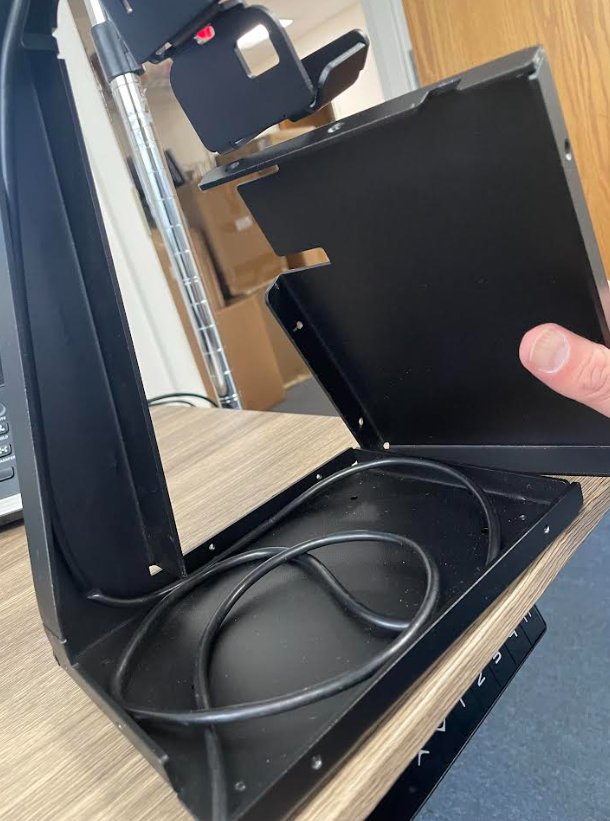

Step 2: Insert screwdriver into gap on the back right of the bottom plate and lightly wiggle to create a gap between the 2 plates, then separate (it is recommended to turn the scanner upside down and lightly tap the sides of the top plate with the back of a screwdriver to easily separate).

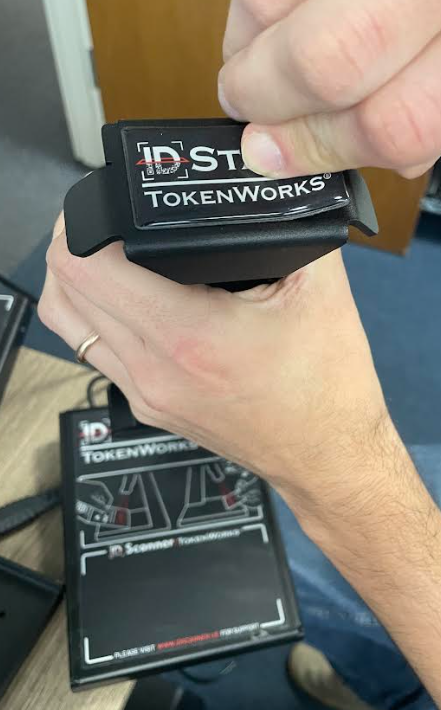

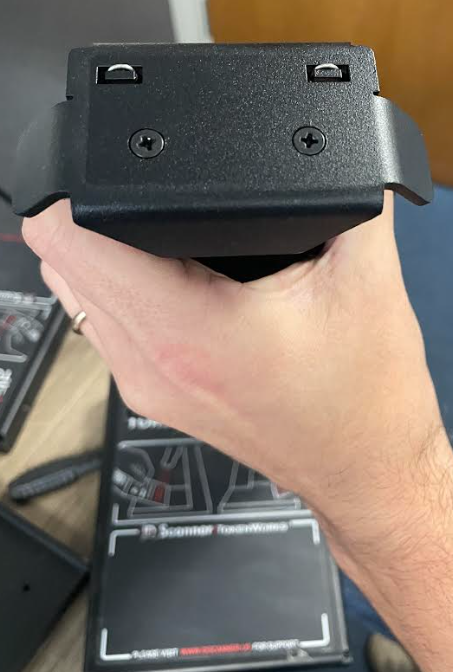

Step 3: Remove the sticker on the top of the stand as well as the 2 screws underneath it.

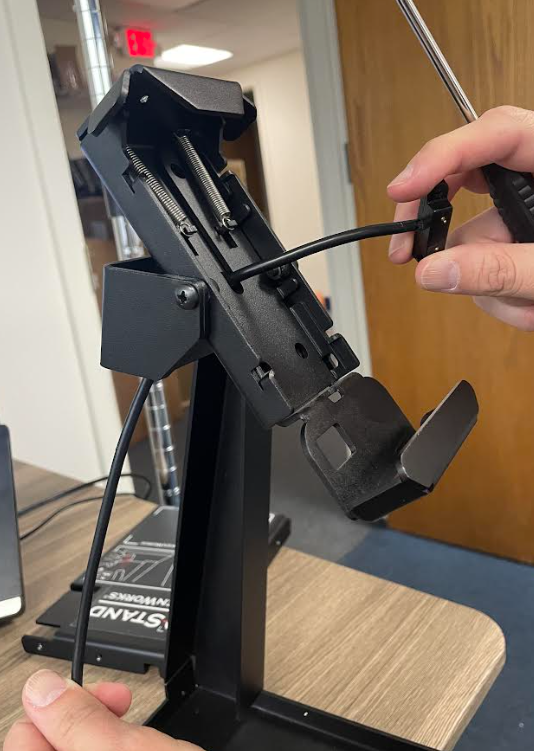

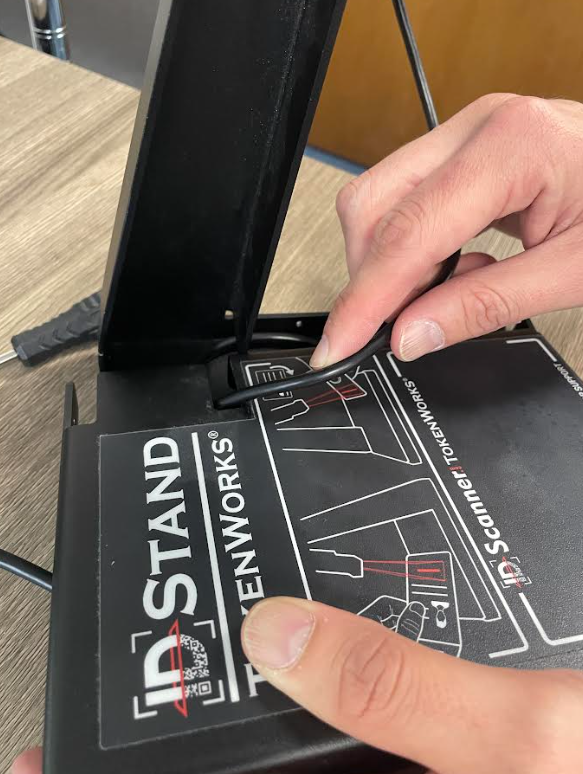

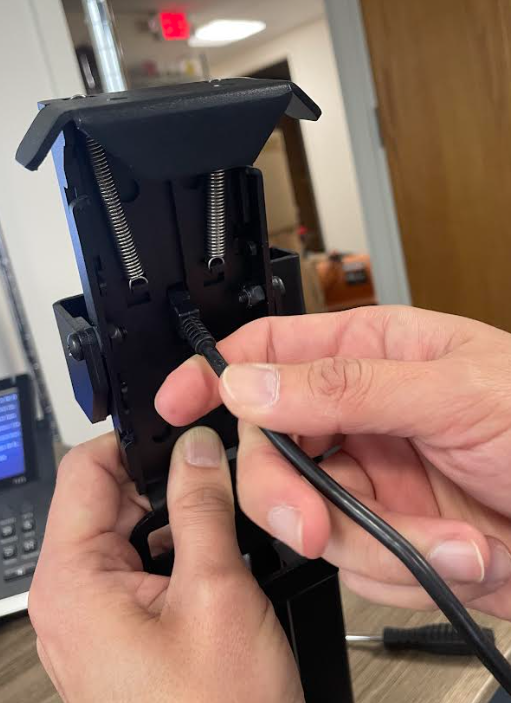

Step 4: Remove charging cable by pulling it through the front of the stand (shown in pictures below).

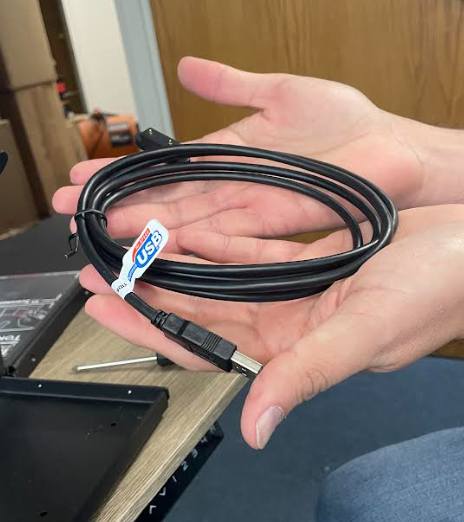

Step 5: Grab your new cable.

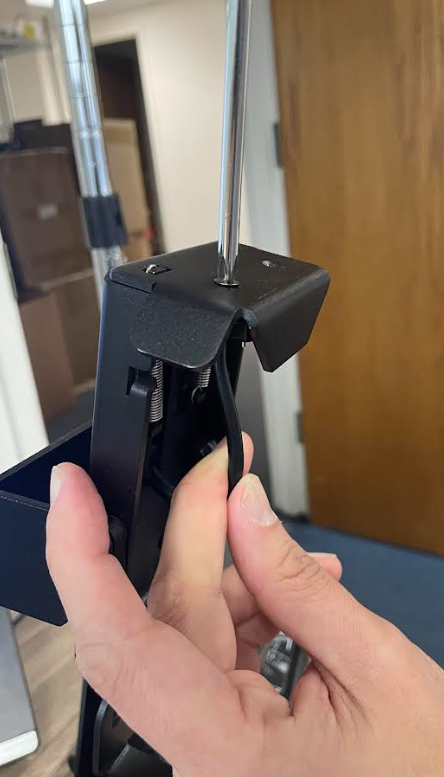

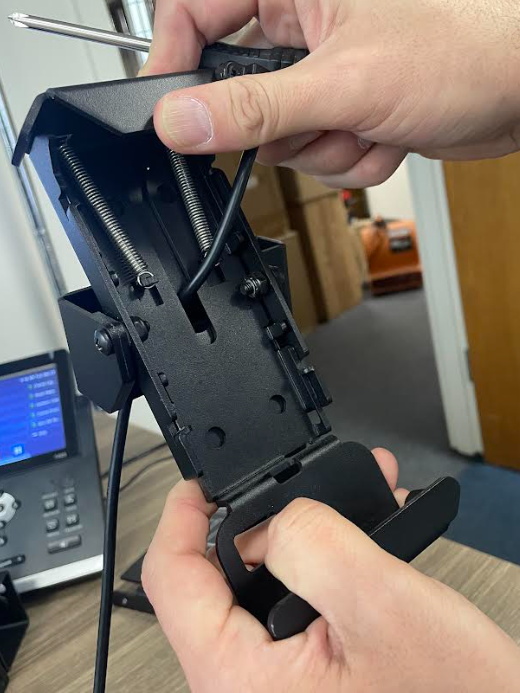

Step 6: Screw in gold-pin side of charging cable to the top of the stand (may take some time & precision).

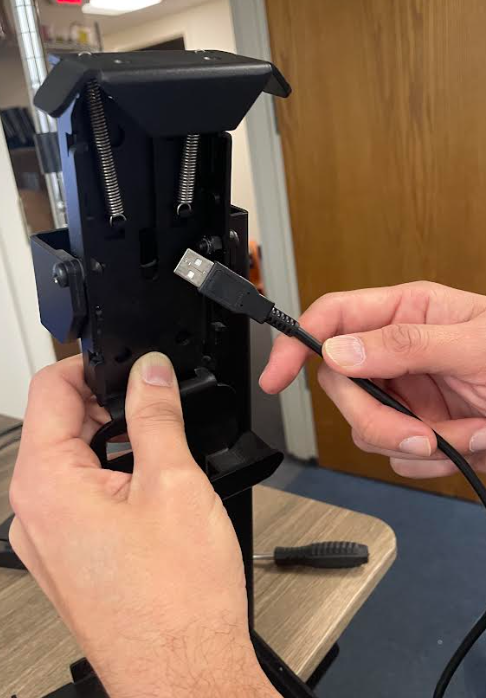

Step 7: Slide charging cable through to the bottom of the stand.

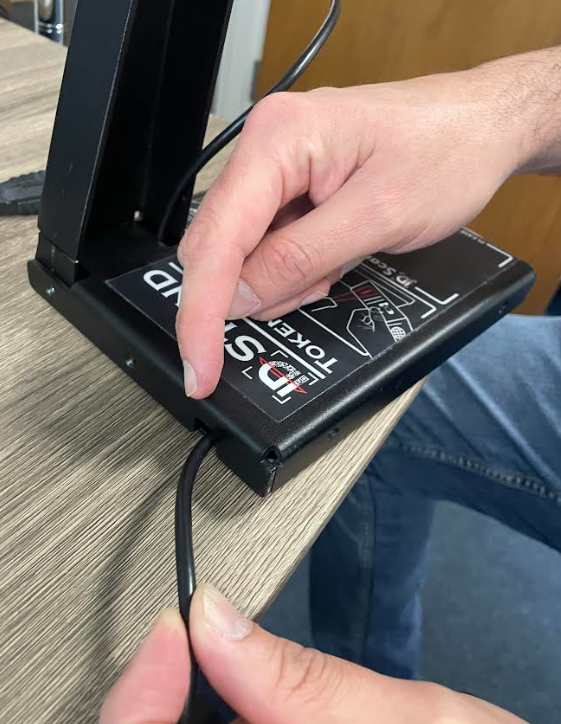

Step 8: Make sure the charging cable neatly and tightly fits in-between the bottom and top plates and there is no excess length being let out to the gold pin charger or the USB coming out of the back.

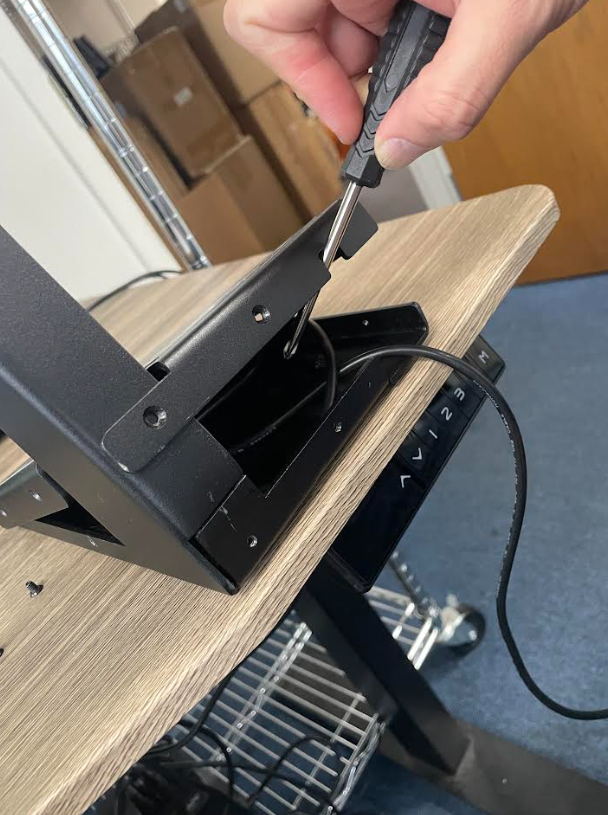

Step 9: Re-screw the top plate back to the bottom of the stand.
