How to Setup IDWedgeBT as USB Keyboard on Mac OSX

How to Setup IDWedgeBT as USB Keyboard on Mac OSX


How to Setup IDWedgeBT as USB Keyboard on Mac OSX

  1. Connect the IDWedgeBT to the Mac with the included RJ50 / USB cable.

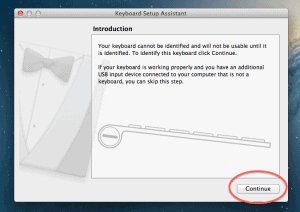

  2. The Keyboard Setup Assistant window will appear with the message “Your keyboard cannot be identified…” Press Continue.
    Mac OSX Keyboard Setup Assistant

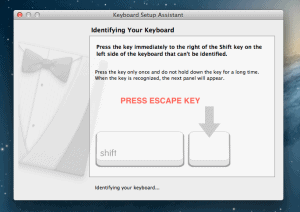

  3. The Identifying Your Keyboard window will appear. It will ask you to press the key to the right of the left Shift key. Press the Escape Key.
    Mac OSX Identifying Your Keyboard

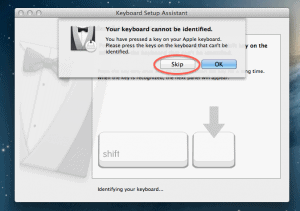

  4. Click Skip.
    Skip Mac Keyboard Identification

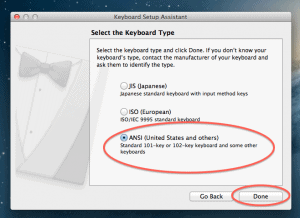

  5. On the Select the Keyboard Type screen, choose ANSI (United States and others). Press Done.
    US ANSI Keyboard Mac IDWedgeBT
  6. Open a text editor like TextEdit and click the cursor in the text field. Swipe/Dunk an ID to confirm that the IDWedgeBT is connected and transmitting keyboard input.
