Importing a Layout File from the Identifake Software

Importing a Layout File from the Identifake Software

The step by step instructions below provide instructions on how to import a layout from one Identifake/IDVisor Sentry machine to another.

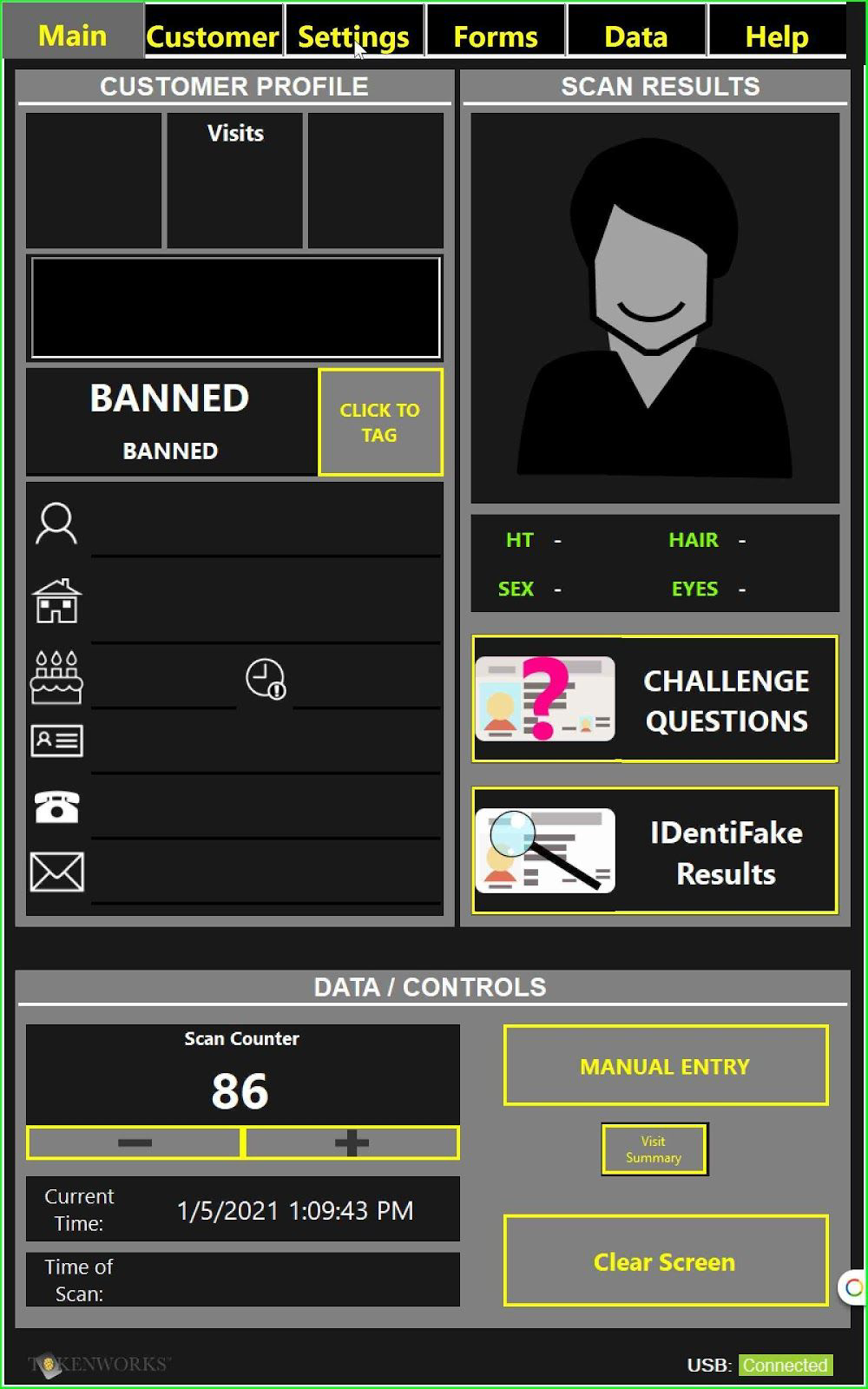

Step 1: Select Settings.

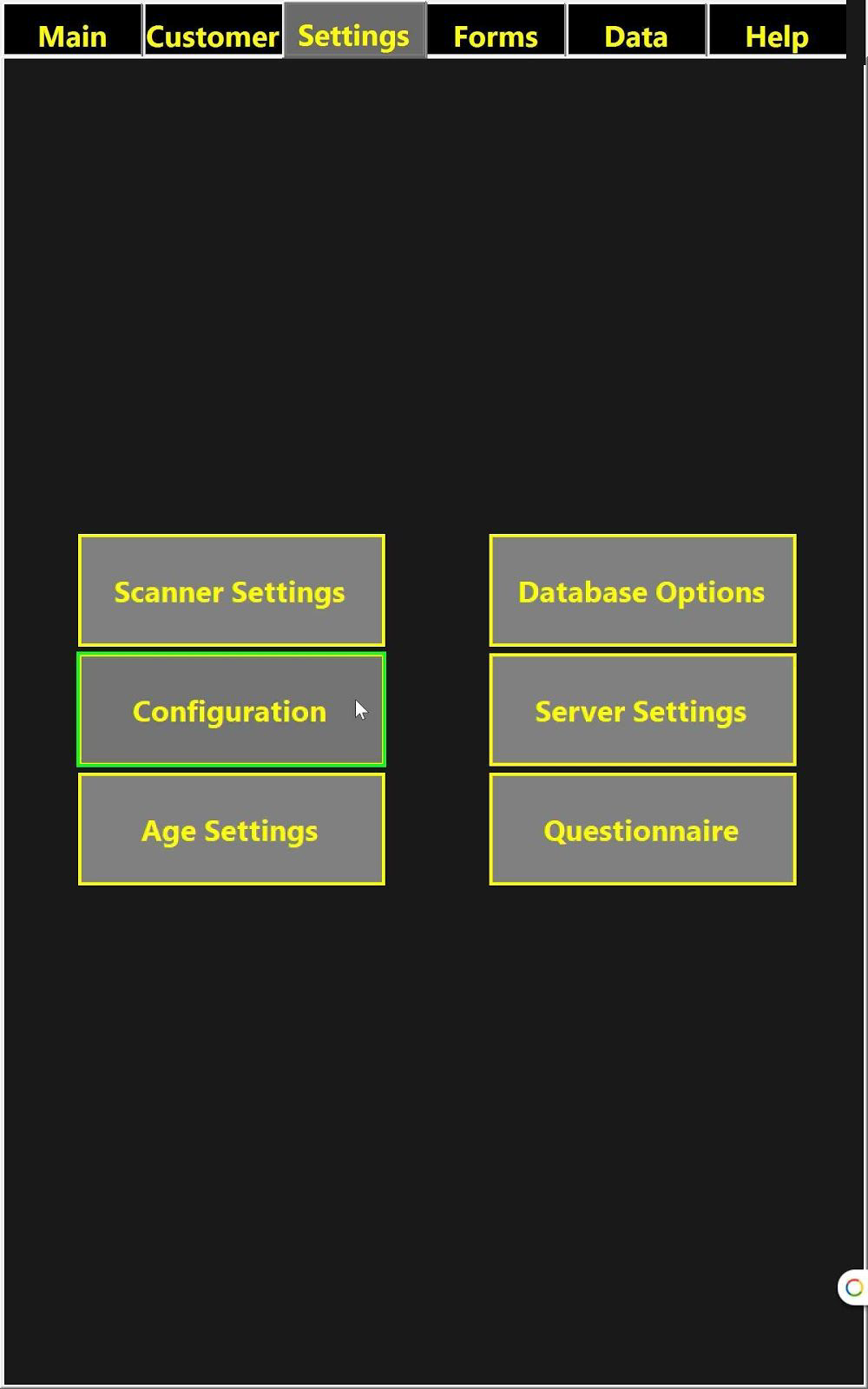

Step 2: On the Settings window select Configuration.

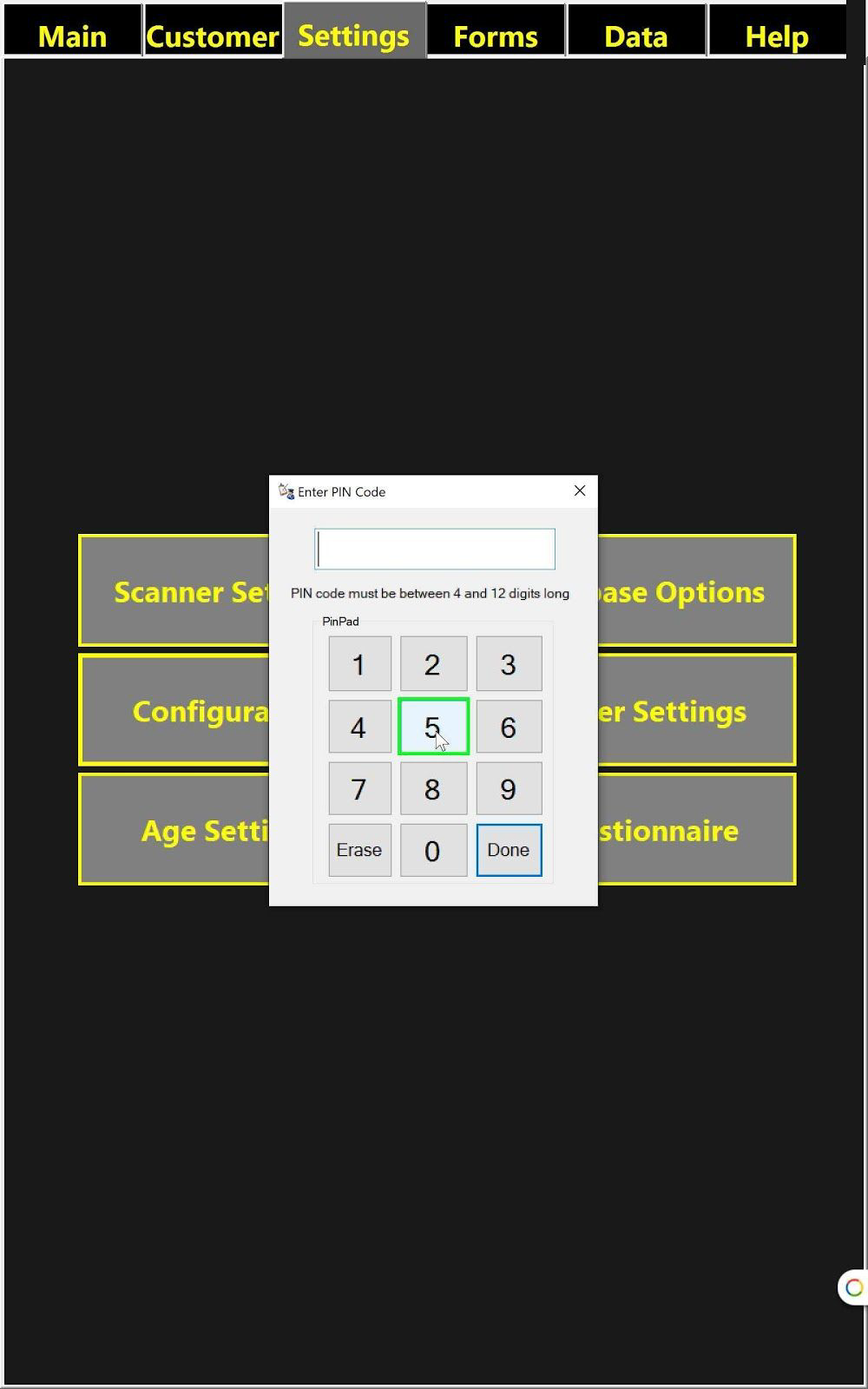

Step 3: Enter the Pin Code for your device. (Default Pin: 5678).

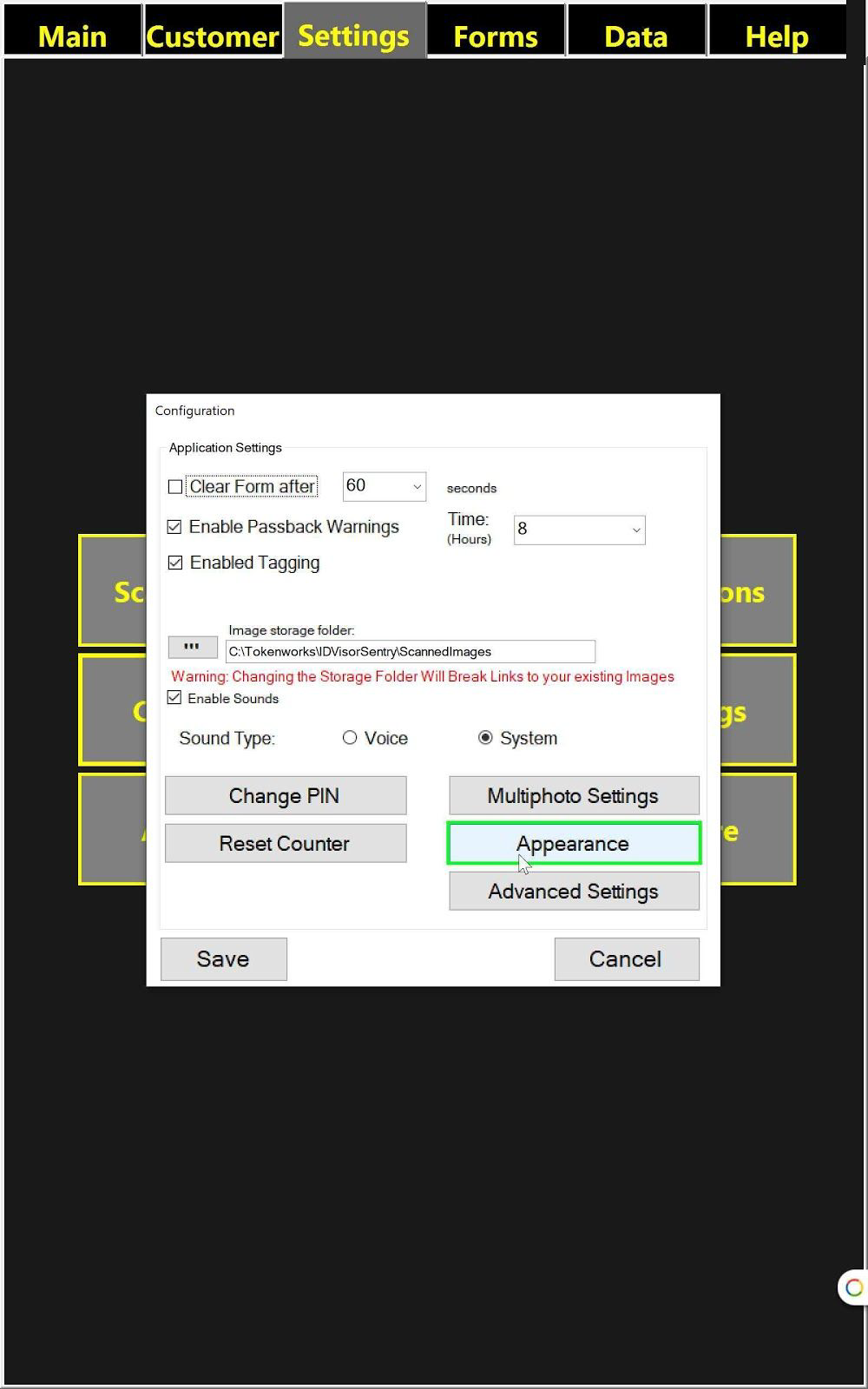

Step 4: In the Configuration window select Appearance.

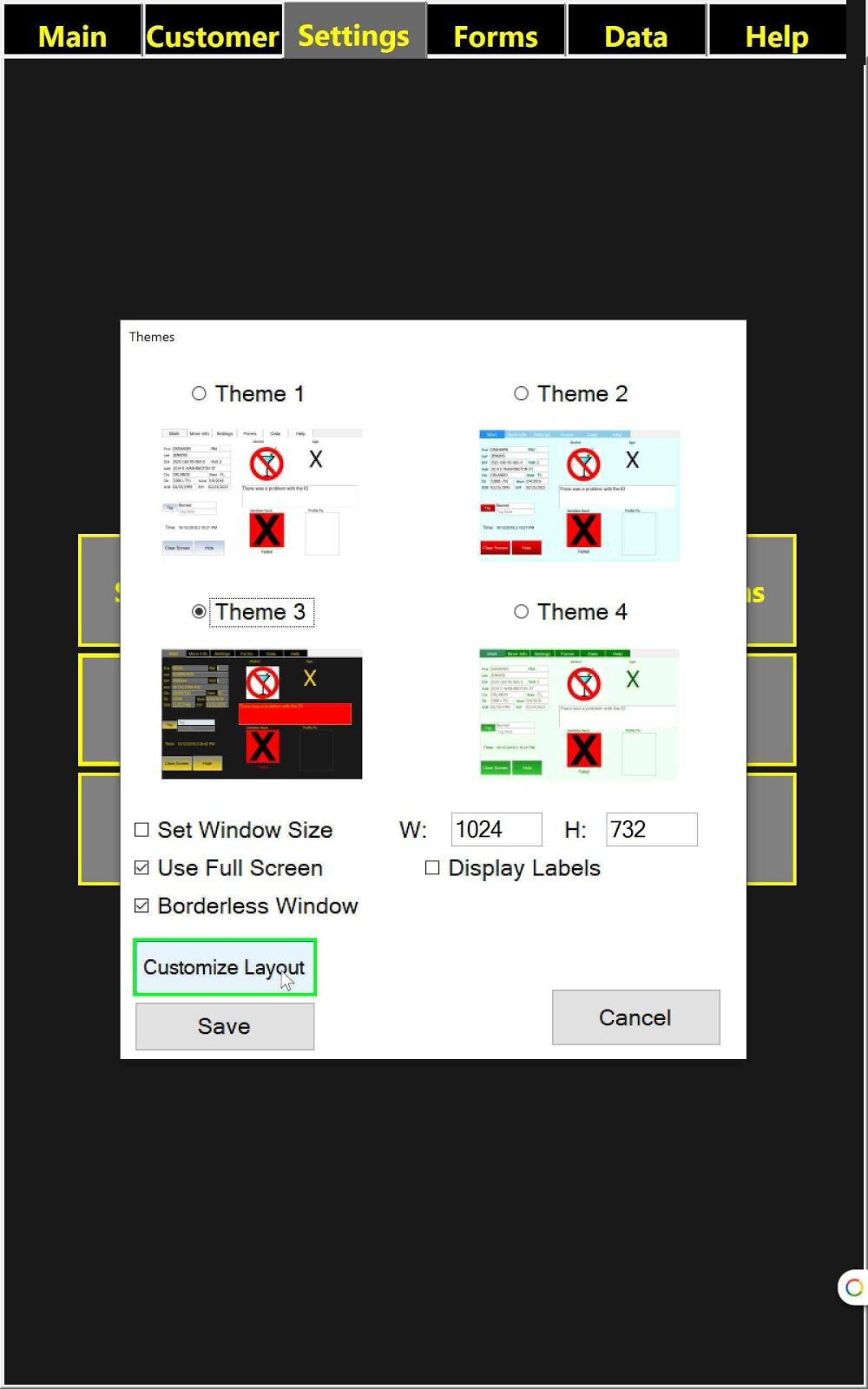

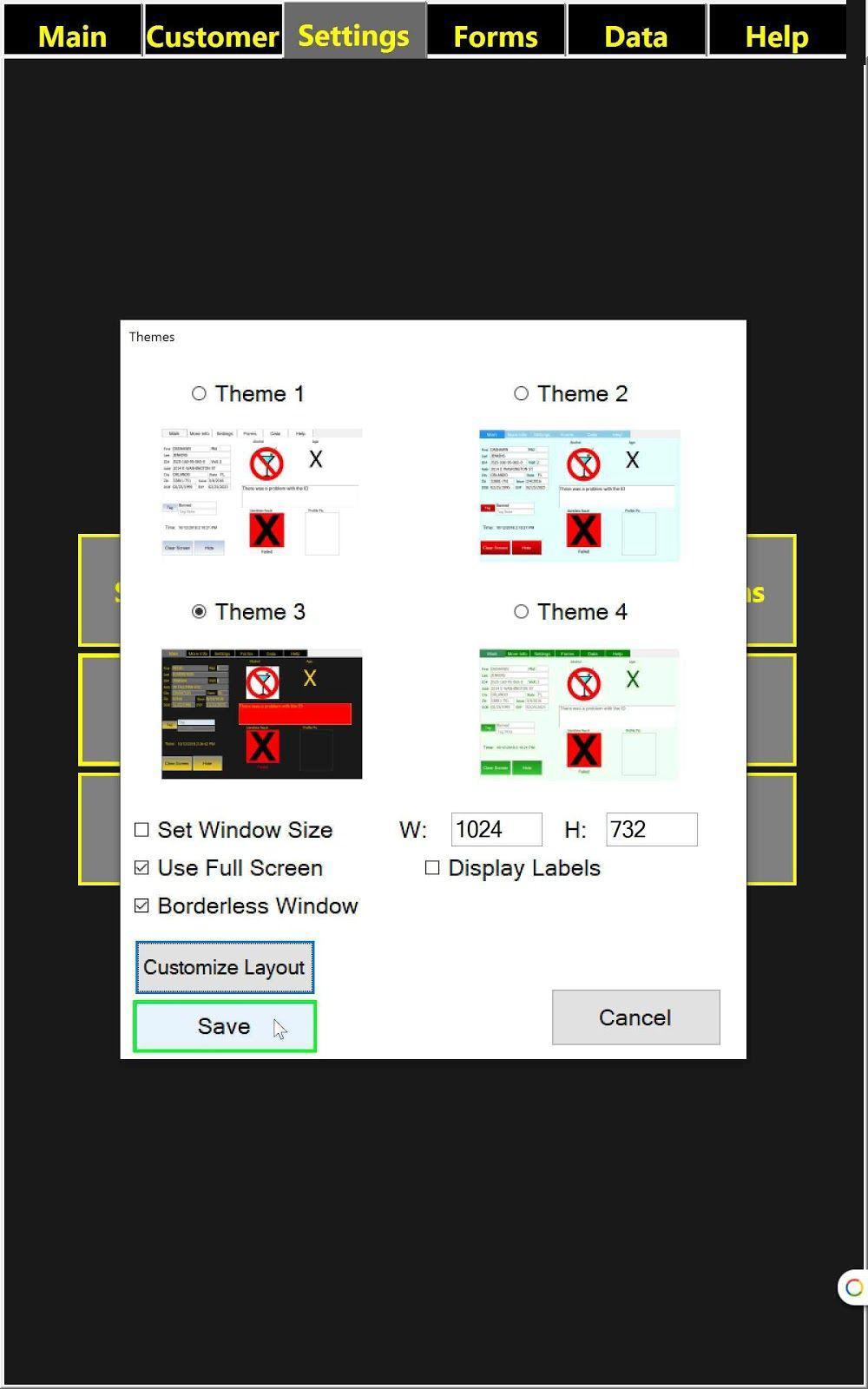

Step 5: Select Customize Layout.

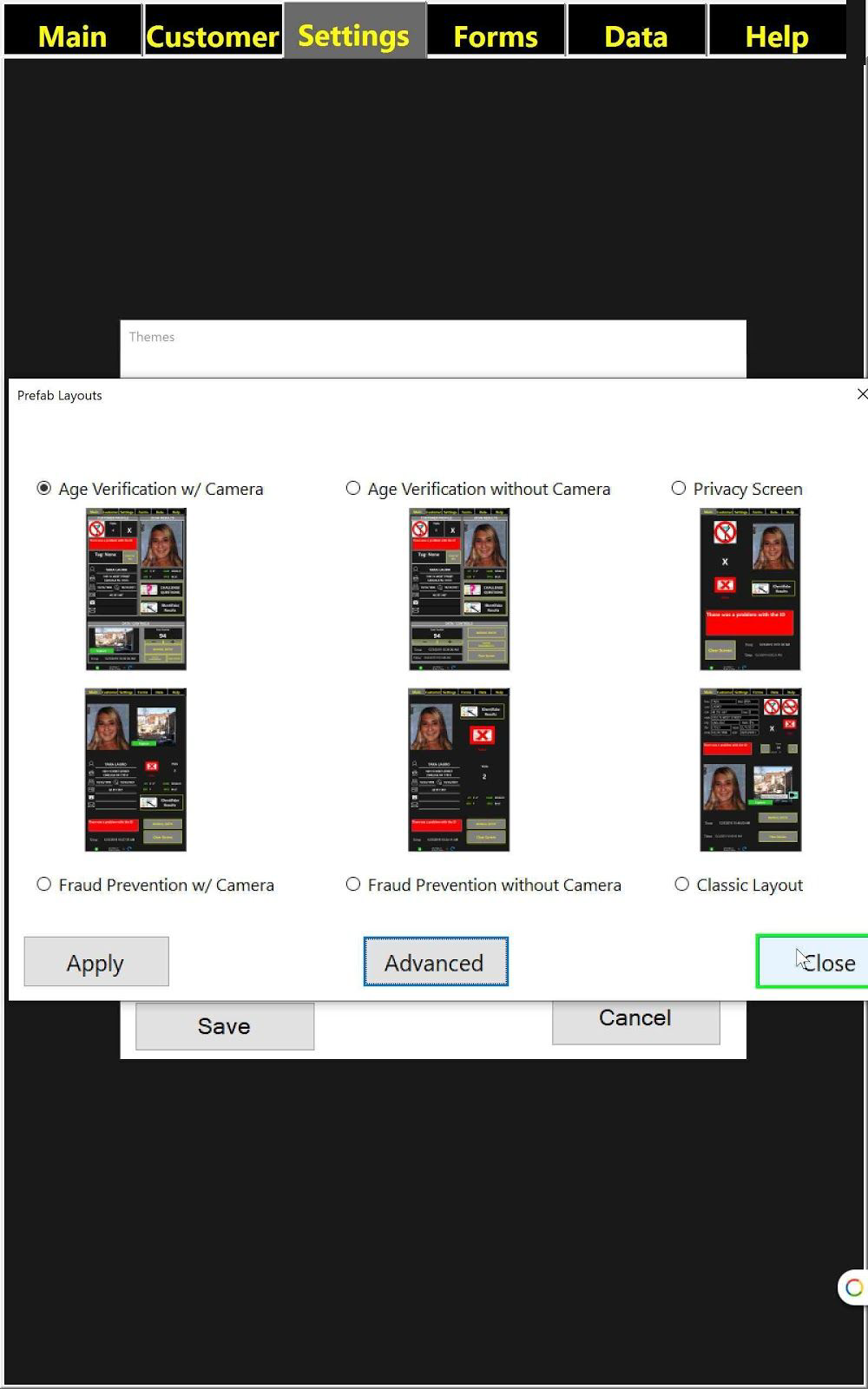

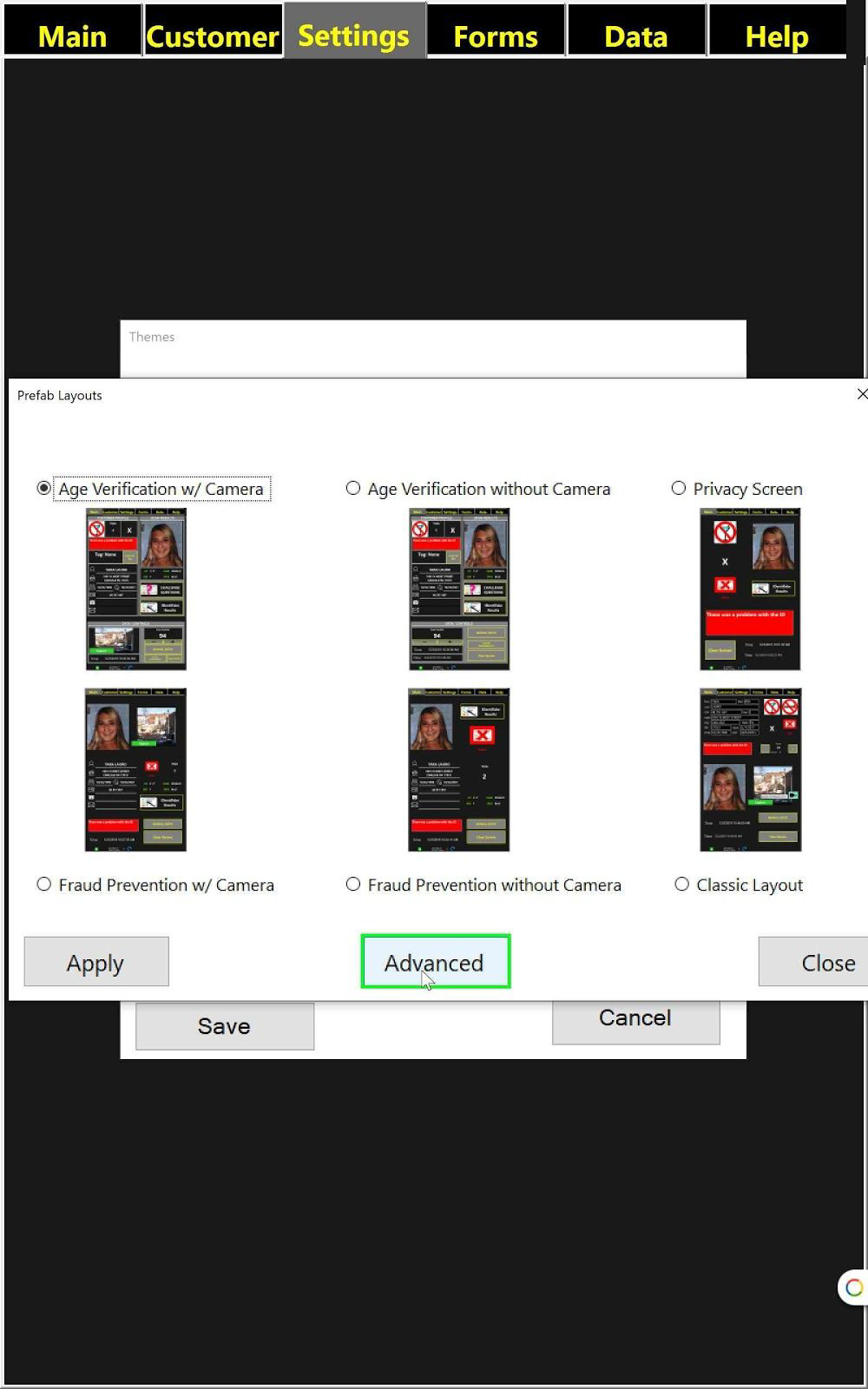

Step 6: Select Advanced.

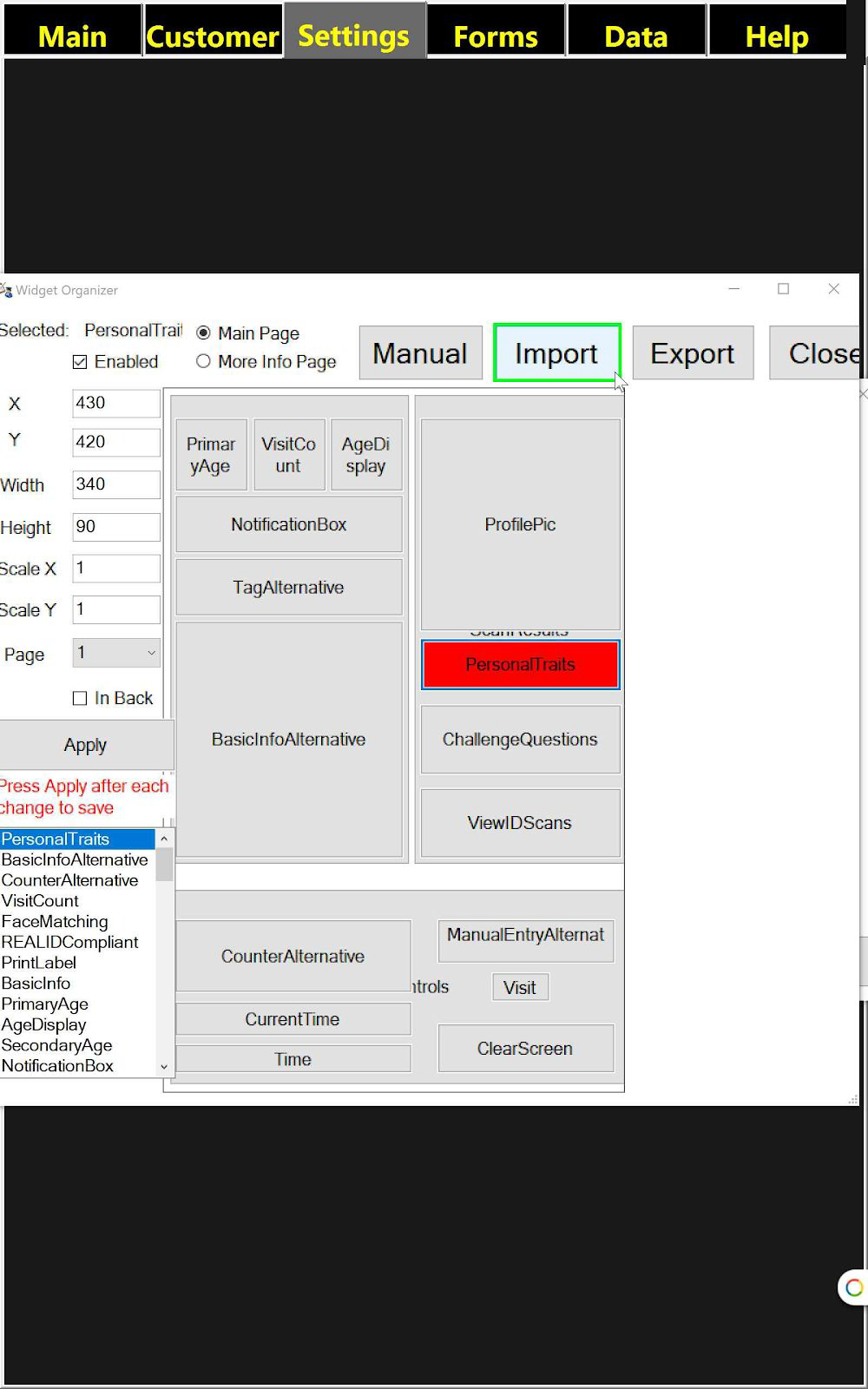

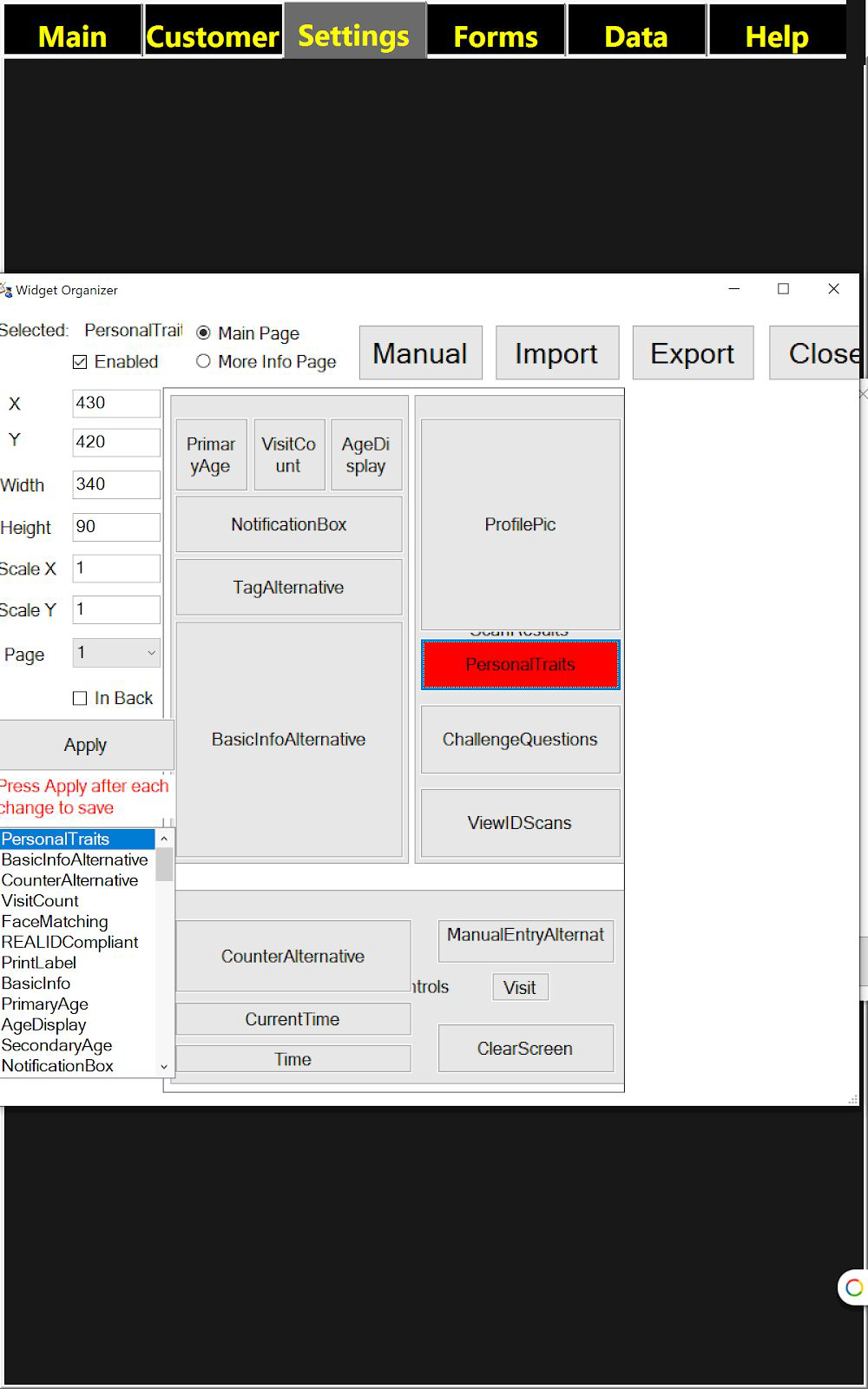

Step 7: Select Import.

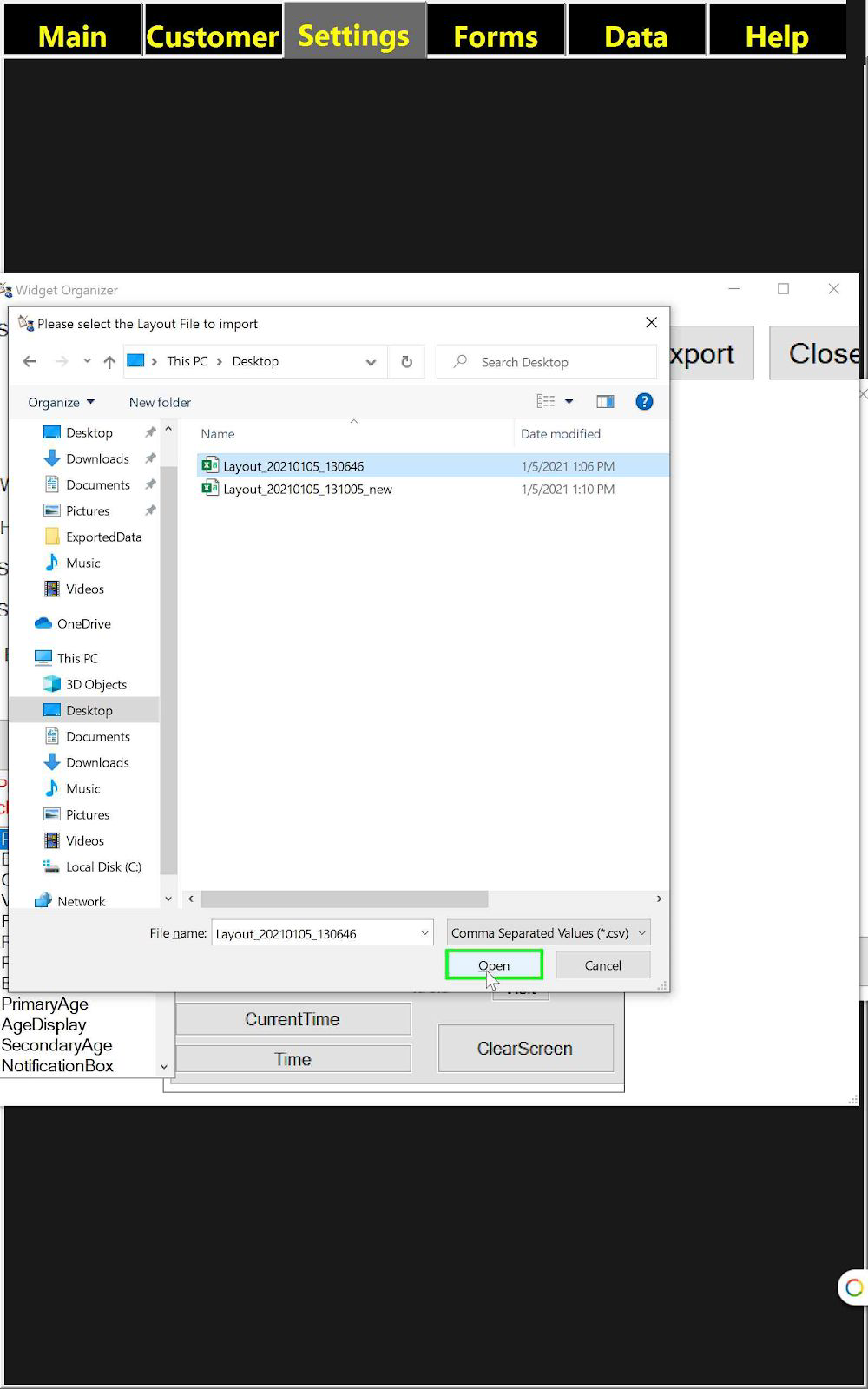

Step 8: Once Import is selected navigate to the location of the layout file you
would like to import.

Highlight the desired layout file and select Open.


Step 9: Once the import is complete, you will be returned to the Widget
Organizer Window.

The window will refresh to implement the imported layout.

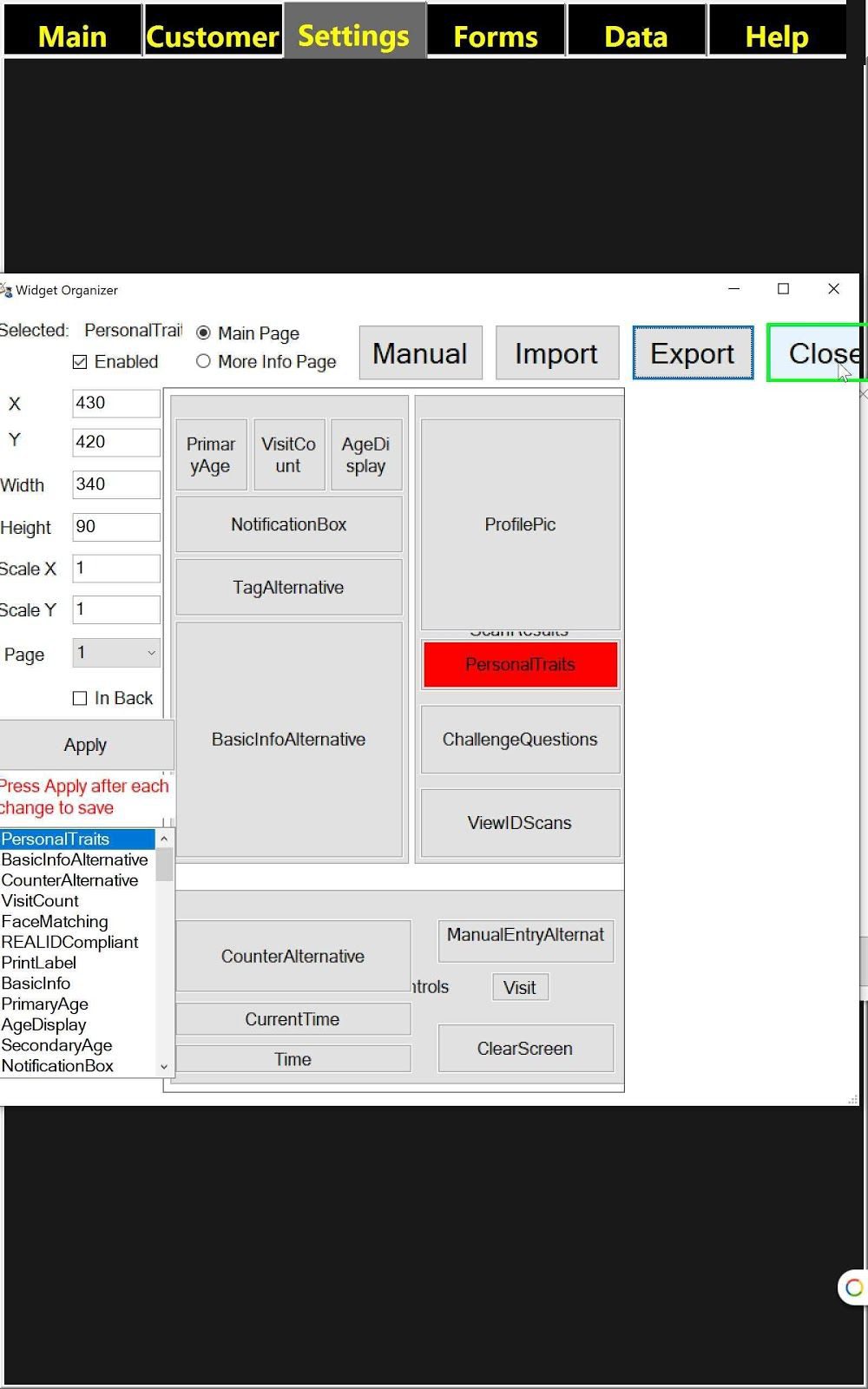

Step 10: Select Close on the Widget Organizer window.


Select Close on the Prefab Layouts window.

Warning: Do not click Apply. This will apply one of the prefab layouts and you will have to begin the process over again.


Select Save on the Themes window.


Select Save on the Configuration Window.

Once the Configuration window is closed we will have to restart the
Identifake software.

Select the Help tab at the top of the page then select Close application.

Enter the Pin Code to exit the application.
