Replacement AgeVisor Touch Power Supply

Lost or Damaged your AgeVisor Touch Power Supply?

This post details the two power supplies used on the Age Visor Touch, how to tell them apart and Amazon links to buy replacements.  Units shipped between 2017-2019 had 5 volt power supplies.  Units shipped from 2020 have the 12 volt power supply.

NOTE: If you are having issues powering on your AgeVisor Touch please see post here BEFORE purchasing a new power supply.  You may not have a bad power supply.

Visit the Amazon links above the pictures provided to purchase a replacement power supply for your AgeVisor Touch.

Use the pictures and specifications provided to ensure you purchase the power supply specific to the AgeVisor Touch you currently own.

There are two types of power supplies (5 Volt and 12 Volt)  and power jacks for AVT.  See below.

 5Volt Power supply

Below are pictures of the 5 Volt power jack and power supply for the Age Visor Touch.  The power supply is 5V DC 3 Amp 3.5mm x 1.35mm Plug Center Positive.



5 Volt power jack on AVT and 5 Volt power supply

 Below is an Amazon link to a compatible 5 Volt power supply

Atolla US Standard Adaptor External Power Supply 15W (5V/3A) AC/DC Adapter for USB Hub, 3.5 x 1.35 mm Plug Center Positive




 12Volt Power supply

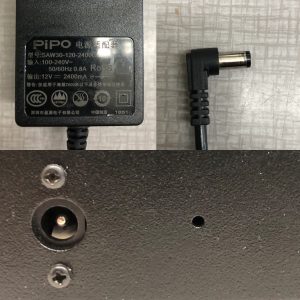

Below are pictures of the 12 Volt power jack and power supply for the AgeVisor Touch and AgeVisor Contactless The power supply is 12V DC 2 Amp 5.5mm x 2.5mm Center Positive Plug.

12 Volt Power Input Jack and Wall Power SupplyBelow is an Amazon link to a compatible 12 Volt power supply

COOLM AC Adapter 100-240V 50 60Hz to DC 12V 2A Power Supply Adapter for Ring Video Doorbell 5.5X2.5MM DC Jack
