TSD Formula for IDWedgeBT

TSD Formula for IDWedgeBT


TSD Formula for IDWedgeBT

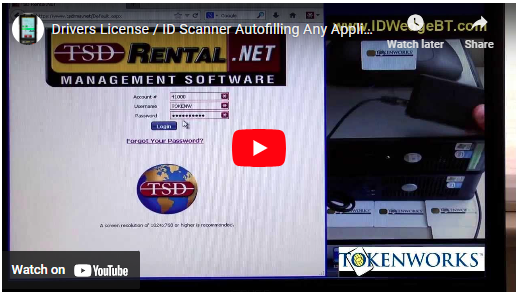

This is the formula to enter into the IDWedgeBT to capture information into the TSD Website.


Link: https://www.youtube.com/watch?v=WSRvkhxOjVg&embeds_referring_euri=https%3A%2F%2Fwww.idscanner.us%2F&source_ve_path=MjM4NTE&feature=emb_title



The text files to be edited are already in the IDWedgeBT Unit.  Simply connect the IDWedgeBT to your computer as a USB drive and copy and paste the appropriate text into each file.

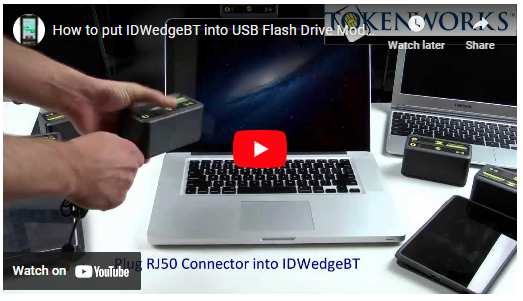

For more information on how to connect the IDWedgeBT to a computer go to:

How to Make IDWedgeBT act like a USB Flash Drive.

Link: https://www.youtube.com/watch?v=CEKplHM1_dQ&embeds_referring_euri=https%3A%2F%2Fwww.idscanner.us%2F&source_ve_path=MjM4NTE&feature=emb_title

Here are the formulas:

driverlicense.txt
[ ]{BACKSPACE}L{TAB}{Pause 1}F{TAB}{Pause 1}M{TAB}A{TAB 2}C{TAB 3}Z{TAB}{Pause 1}{TAB}{TAB}D{TAB}{Pause 1}{TAB}J[/]K[/]%{TAB}{Pause 1}Q[/]W[/]Y{TAB}

creditcard.txt
ab{TAB}

In the config.xml, make sure these keys (which control how fast IDWedgeBT “types” out data) are set to 5.   The TSD.net web page has lots of embedded scripts which need time to execute so IDWedgeBT needs to slow down a bit.
<add key=”CharDelay” value=”5″/>
<add key=”CtrlDelay” value=”5″/>

EOF
