Using IDWedgeBT with a Simple Excel Form

Using IDWedgeBT with a Simple Excel Form


Using IDWedgeBT with a Simple Excel Form

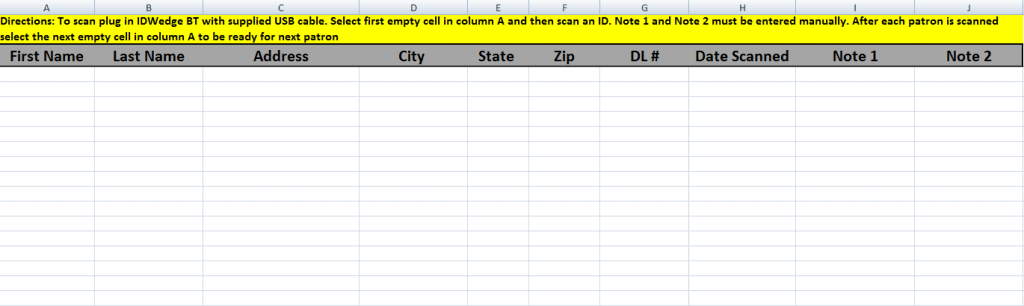

This post will provide a simple excel spreadsheet and a formula that the IDWedgeBT will type into the fields shown below.

sampleformss



Download the Sample Form

Download the Driverslicenses.txt

1:  Mount the IDWedgeBT as a USB Drive. (Instructions on how to do this can be found here.)If mounted correctly your PC should inform you that you have a new removable disk.

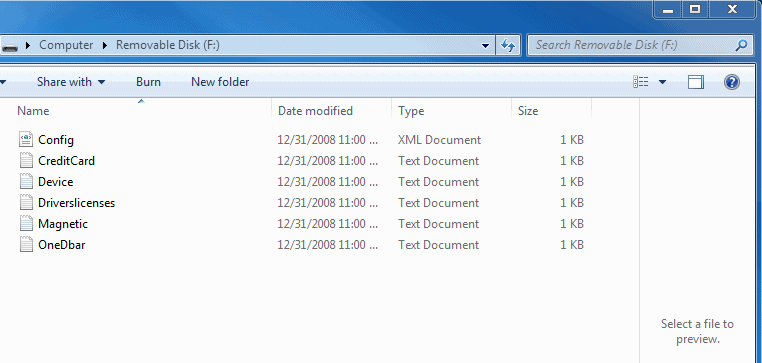

2:  Press Open folder to view files and you will see the  files shown below.

directory

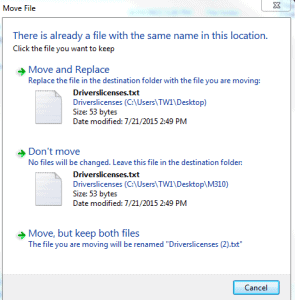

3:  Drag (or copy and paste) the Driverslicenses.txt file to the removable disk directory.A Move File window will appear  ,select Move and Replace

move file

4:  After the Driverslicense.txt file has been copied onto the removable disk, un-plug the IDWedge BT and power it on normally. Connect your IDWedgeBT to the desired device and  open the form.



Tips:

  1. If the ID has been swiped successfully you will hear a beep.
  2. Make sure your curser is flashing in the First Name(Column A) and swipe an ID.
